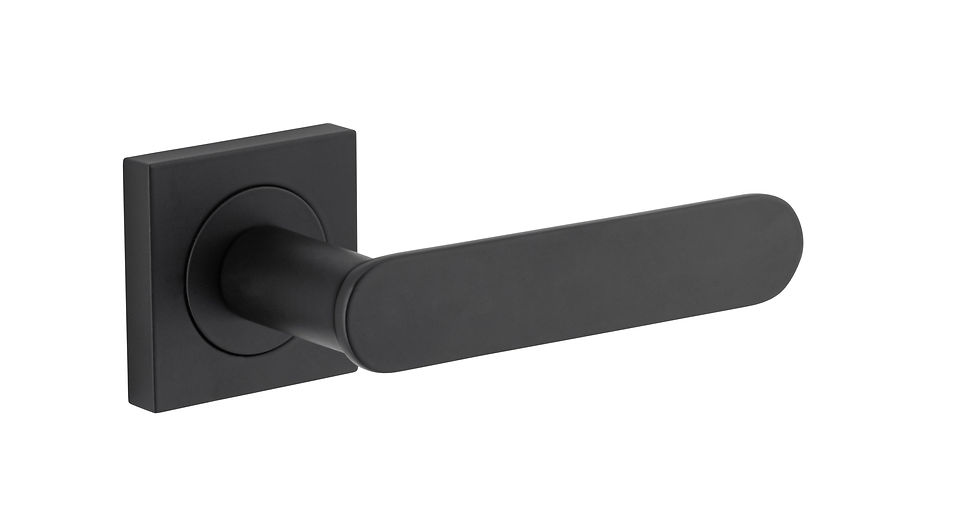

Style and function were carefully considered in the design of the Bronte lever. Contemporary in form, the Bronte features defined edges and a distinct oval shape, gently rounded back to ensure the lever is soft and inviting to the touch.
The Bronte lever can be purchased as a passage, privacy or entrance kit, which includes all components required for your door to function.
Sizing:
Backplate Height: 52mm
Backplate Width: 52mm
Projection: 56mm
Spindle: 7.6mm
Material: Solid Forged Brass
Unit: Pair/Set (2 handles for both sides of 1 door)
Spindle & Screws: Included
Brand: Iver
Each kit comes complete with all necessary hardware for functionality in your desired function and matching chosen finish:
- Lever Set Only: for use with existing latch/lock mechanisms, or for other mechanism requirements - no latch mechanism supplied.
- Passage (Latch) Kit Complete: for internal non-locking doors - comes complete with a 60mm backset split-cam tube latch.
- Inbuilt Privacy Kit Complete: for internal doors where privacy is needed - comes complete with an inbuilt privacy push button (on the handle backplate) and a 60mm backset privacy tube latch.
- Separate Privacy Kit Complete: for internal doors where privacy is needed - comes complete with a separate 52x52mm square privacy turn & snib set, 60mm backset split-cam tube latch and privacy bolt.
- Entrance Kit Complete - Key/Turnthumb Cylinder: for external doors that need high security locks - comes complete with a separate 52x52mm square euro escutcheon pair, high security 85mm centre-to-centre euro mortice lock (60mm backset) and a 65mm length key/turnthumb 5 pin euro cylinder with 2 keys.
- Entrance Kit Complete - Key/Key Cylinder: for external doors that need high security locks - comes complete with a separate 52x52mm square euro escutcheon pair, high security 85mm centre-to-centre euro mortice lock (60mm backset) and a 65mm length dual function 5 pin key/key euro cylinder with 2 keys.
- Dummy Half Set - Left Hand: for linen presses, wardrobes & alike - comes as a fixed, non-functional half set (one only) that acts as a pull handle for aesthetics. Images pictured are the Right Hand variant.
- Dummy Half Set - Right Hand: for linen presses, wardrobes & alike - comes as a fixed, non-functional half set (one only) that acts as a pull handle for aesthetics. Images pictured are the Right Hand variant.
Other Important Notes:
- For retrofitting to a pre-existing 54mm hole, you can additionally purchase a 60x60mm square adaptor plate pair in a matching finish to cover the hole. Click here (0240) to view this item.
- Backset measurements are 60mm for all kits (standard in Australia), please specify in the checkout if 45mm or 70mm backset measurements are required instead (70mm on passage & separate privacy variants only).
- All kits will only work for single doors or non-rebated double doors - if you have rebated double doors, you will have to purchase a separate rebate kit as well. For the entrance door rebate kit click here (6015). For the passage door rebate kit click here (9552).
- For entrance kits, we have your cylinders keyed alike by default for multiple quantities. If you would prefer your entrance kits keyed to differ from one another (e.g. for a separate granny flat or such), please specify in the checkout.
Extra Note: Separate Privacy Kit Complete & Entrance Kit images are of Copenhagen lever for reference.
